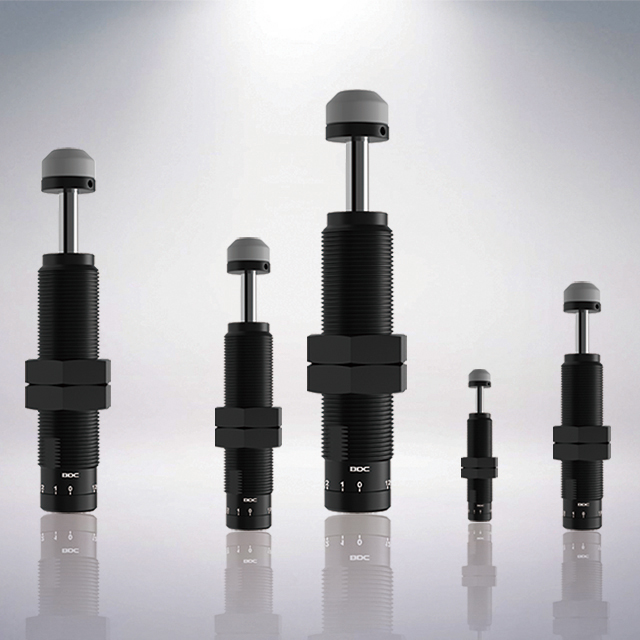

BD Adjustable Series
BD25~BD36 Series
- Product ID：BD Adjustable Series
- QQ：183271753
- Phone: 17306109009
- Tel: +86-510-88852188
- Email: sales@bdctec.cn
- Time: 2021-03-09 17:27
- FEEDBACK
Parameters
| Model |
Stroke （mm） S |
Max.Energy /Cycle （Nm) ET |
Max.Energy /Hour （Nm/hr） ETC |
Effective Weight （kg） We |
Recoil Force （N) |
Weight （kg） |
|
| Min. | Max. | ||||||
| BD25-25(B) | 25 | 220 | 111000 | 9-1230 | 15 | 33 | 0.36 |
| LRBD25-25(B) | 25 | 220 | 111000 | 120-4500 | 15 | 33 | 0.36 |
| BD25-25(B)-SP | 22 | 200 | 100000 | 9-1200 | 15 | 33 | 0.37 |
| LRBD25-25(B)-SP | 22 | 200 | 100000 | 120-4300 | 15 | 33 | 0.37 |
| BD25-40(B) | 40 | 300 | 182000 | 9-300 | 22 | 43 | 0.39 |
| LRBD25-40(B) | 40 | 300 | 182000 | 120-9000 | 22 | 43 | 0.39 |
| BD25-80(B) | 80 | 390 | 210000 | 15-3000 | 22 | 47 | 0.92 |
| BD27-25F(B) | 25 | 220 | 111000 | 9-1230 | 15 | 33 | 0.37 |
| LRBD27-25F(B) | 25 | 220 | 111000 | 120-4500 | 15 | 33 | 0.37 |
| BD27-25(B) | 25 | 220 | 111000 | 9-1230 | 15 | 33 | 0.37 |
| LRBD27-25(B) | 25 | 220 | 111000 | 120-4500 | 15 | 33 | 0.37 |
| BD27-40(B) | 40 | 300 | 182000 | 9-3000 | 22 | 43 | 0.43 |
| LRBD27-40(B) | 40 | 300 | 182000 | 120-9000 | 22 | 43 | 0.43 |
| BD30-35(B) | 35 | 350 | 135000 | 25-6800 | 23 | 47 | 0.61 |
| BD33-25(B) | 25 | 300 | 120000 | 28-7000 | 24 | 49 | 0.77 |
| LRBD33-25(B) | 25 | 300 | 120000 | 130-23000 | 24 | 49 | 0.77 |
| BD33-50(B) | 50 | 500 | 150000 | 55-14500 | 25 | 52 | 0.96 |
| LRBD33-50(B) | 50 | 500 | 150000 | 260-48000 | 25 | 52 | 0.96 |
| BD36-25(B) | 25 | 330 | 125000 | 30-7500 | 25 | 51 | 0.83 |
| LRBD36-25(B) | 25 | 330 | 125000 | 135-24500 | 25 | 51 | 0.83 |
| BD36-25(B)-SP | 25 | 330 | 125000 | 30-7500 | 25 | 51 | 0.85 |
| LRBD36-25(B)-SP | 25 | 330 | 125000 | 135-24500 | 25 | 51 | 0.85 |
| BD36-50(B) | 50 | 550 | 160000 | 60-15000 | 26 | 65 | 1.06 |
| LRBD36-50(B) | 50 | 550 | 160000 | 280-49500 | 26 | 65 | 1.06 |
Dimension（Unit：mm）
| Model | A1 | A | B | C | D | E | F | G | H | SW |
| BD25-25(B) | 143 | 126.5 | 101.5 | M25x1.5 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| LRBD25-25(B) | 143 | 126.5 | 101.5 | M25x1.5 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| BD25-25(B)-SP | 152 | 140 | 117.5 | M25x1.5 | 10 | 22 | 23 | 12 | 17 | 23.2 |
| LRBD25-25(B)-SP | 152 | 140 | 117.5 | M25x1.5 | 10 | 22 | 23 | 12 | 17 | 23.2 |
| BD25-40(B) | 195 | 179 | 139 | M25x1.5 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| LRBD25-40(B) | 195 | 179 | 139 | M25x1.5 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| BD25-80(B) | 343.5 | 327 | 247 | M25x1.5 | 8 | 22 | 23 | 12 | 27 | 23.2 |
| BD27-25F(B) | 143 | 126.5 | 101.5 | M27x1.5 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| LRBD27-25F(B) | 143 | 126.5 | 101.5 | M27x1.5 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| BD27-25(B) | 143 | 126.5 | 101.5 | M27x3.0 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| LRBD27-25(B) | 143 | 126.5 | 101.5 | M27x3.0 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| BD27-40(B) | 195 | 179 | 139 | M27x3.0 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| LRBD27-40(B) | 195 | 179 | 139 | M27x3.0 | 8 | 22 | 23 | 12 | 17 | 23.2 |
| BD30-35(B) | 184 | 168.5 | 133 | M30x1.5 | 10 | 28 | 28 | 15 | 18 | 28.5 |
| BD33-25(B) | 165 | 149.5 | 124.5 | M33x1.5 | 10 | 28 | 30 | 22 | 16.5 | 31 |
| LRBD33-25(B) | 165 | 149.5 | 124.5 | M33x1.5 | 10 | 28 | 30 | 22 | 16.5 | 31 |
| BD33-50(B) | 232 | 216.5 | 166.5 | M33x1.5 | 10 | 28 | 30 | 22 | 16.5 | 31 |
| LRBD33-50(B) | 232 | 216.5 | 166.5 | M33x1.5 | 10 | 28 | 30 | 22 | 16.5 | 31 |
| BD36-25(B) | 165 | 149.5 | 124.5 | M36x1.5 | 10 | 28 | 33 | 22 | 16.5 | 34 |
| LRBD36-25(B) | 165 | 149.5 | 124.5 | M36x1.5 | 10 | 28 | 33 | 22 | 16.5 | 34 |
| BD36-25(B)-SP | 173 | 157.5 | 132.5 | M36x1.5 | 14 | 28 | 33 | 22 | 16.5 | 34 |
| LRBD36-25(B)-SP | 173 | 157.5 | 132.5 | M36x1.5 | 14 | 28 | 33 | 22 | 16.5 | 34 |
| BD36-50(B) | 232 | 216.5 | 166.5 | M36x1.5 | 10 | 28 | 33 | 22 | 16.5 | 34 |
| LRBD36-50(B) | 232 | 216.5 | 166.5 | M36x1.5 | 10 | 28 | 33 | 22 | 16.5 | 34 |
